机构部件
LAMP

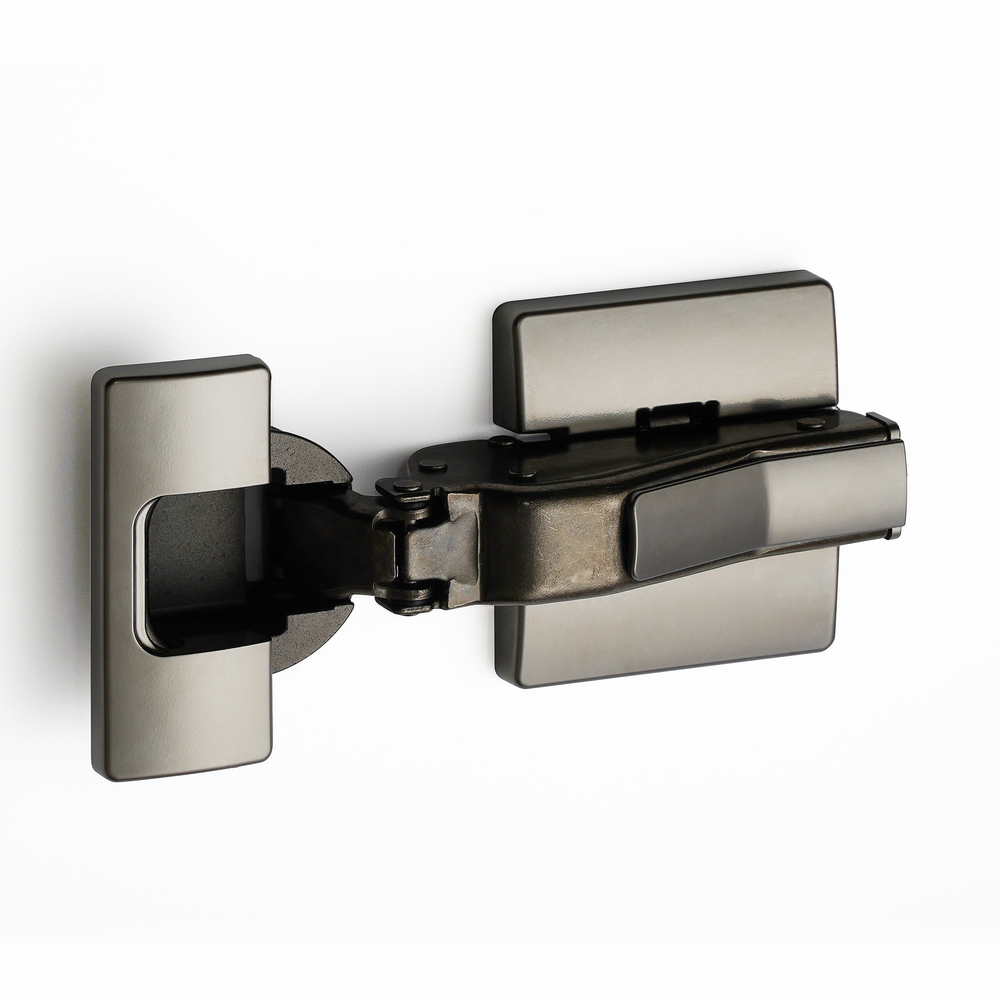

承重用快装隐形铰链
J95型
95°Opening/16 mm Overlay
3-way-adjustment function by mounting plate (depth + 1.5, - 2.5 mm, vertical +/- 3 mm, overlay [horizontal] + 0, - 4 mm).
Simple One-Touch Installation and Detachment.
Max. Door Weight : 25 kg with 2 pcs, 40 kg with 3 pcs.
Snap on mount.
Simple One-Touch Installation and Detachment.
Max. Door Weight : 25 kg with 2 pcs, 40 kg with 3 pcs.
Snap on mount.
另售
—Mounting plate J95-P6T
—Face plate for glass door GH-J95FP
—Safety cover J95SC-16GR
—Cover for mounting plate J95ZC-GR
—Face plate for glass door GH-J95FP
—Safety cover J95SC-16GR
—Cover for mounting plate J95ZC-GR
商品情况
本体
搜索结果
4件
| 图片 | 型号 | 商品名称 | 商品编码 | 供货价(含税) | 库存 | 购买数量 | 操作 |
|---|---|---|---|---|---|---|---|
|
J95-24/16T | 铰链 | 160-033-658 |
企业客户认证可见
|
- |
|
|
|
J95-C24/16T | 铰链 | 160-033-657 |
企业客户认证可见
|
- |
|
|
|
J95-24-16T BN | 铰链 | 160-034-920 |
企业客户认证可见
|
- |
|
|
|
J95-C24-16T BN | 铰链 | 160-034-917 |
企业客户认证可见
|
- |
|
|
A mounting plate (sold separately) is required for installation. Please order separately.
